I was recently thinking about sharing some of my knowledge of winemaking with readers of this book. My interest in that hobby isn’t shared by many of my acquaintances, but as I reflected on my experiences I realized I have much to offer, but only to those who will take a near professional interest in the subject. If you really love great wine and are interested in making great wine this section might be right for you. Do know up front that the cost for equipment to do a professional job making great wine is pretty high … until you factor in cost averaging across many bottles of wine, or realize how much you actually spend on commercial wines. I concluded that if I didn’t capture my experience here it would likely be lost forever. Thus I will now begin a narrative to describe background and then essential winemaking information.

I made my decision to invest my time and money in winemaking back in 1997 based on economic considerations, because my wife Marie and her friends were serious consumers of good quality Chardonnay wines … at about $15 a bottle. It adds up quickly. A bit over 100 bottles buys the equipment I recommend later. My payback period for the equipment on that basis alone was less than six months! But before getting to that story I want to provide earlier background that ultimately led to my decision to make great wine.

My experiences in wine making go all the way back to 1968, and across the years I’ve made some excellent blackberry, dandelion, sherry, Chardonnay and Merlot wines. I also made some marginal plum, fig and Concord grape wines. It was a mixed bag with more art than science in the early efforts, and certainly limited knowledge. As you might expect the results varied a lot.

Again going backwards in time, during 1989 I flew to California to meet with Marie who was there on business. We planned to spend some time just enjoying San Francisco for a few days at the conclusion of her business meetings. What happened on the first day is that I took a walk up one of the hills while she was in a meeting and I found a store that sold wine. By sheer good fortune I bought a bottle of Chardonnay that I took back to surprise and share with Marie, and it was so buttery and smooth and delicious that we both were really happy. I never forgot that experience and I later regretted losing the label from that bottle, for today I cannot tell you who made that wine. I only remember that it was in a black bottle.

By serendipity our great friends Bob and Lois Kitiuk gave Marie and me a very expensive and excellent bottle of Chardonnay wine in July of 1997 to celebrate our wedding anniversary. It cost $50 a bottle, which at that time was quite expensive, and the wine was Cakebread Cellars® Reserve Chardonnay. The wine was so good and so buttery and so smooth that I decided that I simply had to try to duplicate it, and that was the beginning of my professional quest to make great wine.

I decided to use my knowledge of chemistry and obtain all the right equipment and analyze all of the important aspects/endpoints of the Cakebread Cellars® product as if I ran a laboratory. What I was doing was setting specific measurable goals that I would attempt to match making my own Chardonnay wine. I then acquired a superb technical book on wine making along with essential equipment, and then I located a small vineyard that grew only Chardonnay and Merlot grapes, to perfection. Fortunately for me harvest time was arriving just in time for me to get the very best grapes. Beyond that I used my knowledge in science and engineering and some creativity to create a winemaking environment and process unlike any I ever read about. The short version of this story is that I was completely successful in my first attempt to exactly clone the Cakebread Cellars® Reserve Chardonnay. I was delighted beyond belief and I then proceeded to make a Merlot wine of similar perfection, but against no specific retail product as a standard.

All in all I gained a great amount of knowledge and I was proud of my success, realizing that my experience relative to the wide world of wines was still very limited. That didn’t matter to me as I had perfect wines to present to my wife and the knowledge that I could make more at any time at a very low price. Thus began my capture of all that I did that today I can share with you. Let’s proceed.

Prepare to spend between $1500 and $2000 just to get most of the right equipment. The real payback comes when you make wine for many years and get the cost per bottle for equipment down to about $1. If you made and drank (with your friends and family, of course) a case of 12 bottles of wine every month it would take you 11 years or more to cost average your equipment cost down to $1 per bottle. If consumption were to average instead a bottle a day (due to entertaining, of course) it would take only 4 years to cost average the equipment cost down to $1 per bottle.

When you add in the cost of consumables for making the wine and testing it and the grapes the overall cost per bottle will still be around $4. That depends on how much you have to spend for the grapes … but it provides you great wine, not ordinary wine. Beyond that, if you typically pay $10 for a bottle of average wine instead of making your own excellent wine for $4 per bottle, you have wasted money as well as missed a much higher quality enjoyment. Why be mediocre when you can be great?

It is wisely economical to save empty wine bottles as they can individually be used many times as long as you clean and sterilize them between uses. Note also that the size of your wine bottles can vary based on consumption rate after opening. In general two adults will drink one 750 ml bottle of wine at a meal, so if four adults are having dinner why not open one 1500 ml bottle instead of two smaller bottles? An alternative to bottling is to use a large stainless steel storage vessel with a tap and with a nitrogen or carbon dioxide head system to keep air out. By so doing you fill one or more carafes with wine instead of having to deal with bottles.

The best commercial wines vary in price from about $25 per bottle to $75 per bottle or more. This means that fewer than 2 percent of all wines sold qualify in terms of quality and cost and volume of sales. The other 98 percent are mostly okay, with a few horrible exceptions best used by pigs trolling in bad neighborhoods. Your wine should at least compete favorably with wines that cost $25 to $50, and it will be up to you to balance the rate of return between economics and quality of life.

I have puzzled over how to approach this subject. Should I share most of my experiences from my early efforts up to the present or should I confine my subjects to only the very best of the best? This is not a trivial consideration for I have made different types of wine across many years with equipment ranging from plastic gasoline cans to very expensive Italian stainless steel fermentation vats. The truth is I have had successes and failures in all of those environments, and those experiences have been an important part of me learning to make great wine.

My experiences can help anyone serious about making great wine to avoid mistakes and to creatively compete with the high-end producers. It is up to you to decide whether you are simply a wine drinker or a lover of great wines ready to take your turn at creating perfection. Well, I will provide my recipes and engage in dialogue with those serious enough to purchase the right wine making and testing equipment and then ask for the recipes by email. Otherwise, providing my recipes and procedures will not guarantee great wine, for there are serial dependencies starting with grape selection that involve special chemicals, particular strains of yeast and bacteria, testing and testing materials, and special processing in making the wine using very specific methods and equipment.

If you read beyond this point I will assume your interest is piqued and that you are ready to make a commitment to making great wines. If that is not true then you should not waste your time, as I will be getting into technical material quickly. I do not mind if you stop here, for some of us are best as thankful recipients of great wines from their more determined friends. Alas, choose your friends carefully!

I know of only one person across the years who made great wine at home, with me as one of his happy recipients. But his simple Concord grape wine was unforgettable. Perhaps you will be lucky too as a creator of fine wines and/or as a delighted guest. As you might expect our individual tastes and preferences in wines vary a lot. Wines vary from dry to sweet, from white to blush to red for grape wines, from low alcohol content of around 8% to high alcohol content of around 16% or higher for fortified wines like port or sherry that are around 20% alcohol.

Low alcohol content wines are used regularly at meals in Europe and even the children share in the delightful tastes. There is not the childish issue of drunkenness or the foolishness of governments or religions trying to oppress the populations. In the USA, however, wine aficionados find it necessary to avoid/exclude government interference and religious zealots from ruining the beautiful experiences of making and drinking fine wines. In the Orient rice wines are common and the best of them are quite enjoyable when used as intended. Similar to Europe, families can enjoy responsible drinking at meals, and social drinking in larger amounts is reserved for special occasions, like, is it Friday evening?

A good rule of thumb for the home winemaker is to have an alcohol goal of 13% to 14%, which mirrors that of most commercial wines made in the USA. The primary reason is that wines of lower alcohol content tend to spoil unless very involved steps are used in processing and bottling to avoid wild yeasts and bacteria that will grow in/on and spoil the bottled wine (for example, pasteurization). I will later provide some techniques for the home winemaker to use successfully with lower alcohol percentage wines.

Another rule of thumb is to stick with making grape wines instead of wines from other fruits. The reason is that the natural chemicals in grapes that yield superior wine and long storage life are not present in other fruits. That means it is more complicated to make other fruit wines successfully, and mostly wines made from other fruits are more of a novelty than a beverage to be used regularly. Thus, I strongly recommend focusing on one or two types of grape wine until perfection is achieved rather than trying to make many kinds of wine, grape or other types, and confusing your learning process. I focused on making Chardonnay and Merlot.

Much has been written about the use of chemicals like potassium metabisulfite in fairly high concentrations to destroy wild yeasts and bacteria so that they do not interfere with and potentially ruin a wine while it is fermenting … or after it is bottled. My experience tells me that creating and maintaining a sterile environment is the easier and more reliable way to make and bottle great tasting wine. I do not agree with the book experts and my successes are proof of the utility of my methods, which I will describe generally later. Beyond my procedural thoughts and taste considerations, the presence of excessive sulfites provokes an allergic response in some people who might otherwise really enjoy wines.

What I have to share, from this point forward, addresses only my methods for making Chardonnay wine, though I have used a near identical process for making great Merlot wine.

Let’s assume you have acquired Chardonnay grapes and you have washed them, crushed them and pressed them to extract the juice. Ideally you will have tested individual grapes from the harvest with a refractometer first for dissolved solids content, which in a drop of grape juice from a lightly squeezed grape is essentially only sugar. The ideal reading from the refractometer is 24 degrees brix, which is a long established standard of grams of dissolved sugar per 100 grams of grape juice, for making medium dry white wines in the range of 13% to 14% alcohol.

As you will learn now a refractometer measures light diffraction according to Snell’s Law and it looks like a small telescope with a funny inclined front end prism with a hinged cover instead of a lens like you would find on a telescope. You put a drop of grape juice directly on the center of the prism surface and close the cover to spread the juice out over a larger surface area of the prism with uniform thickness. You then point the refractometer towards a light source like the sky close to the sun (but not at the sun!) and look through the eyepiece. You will notice an illuminated scale measured in degrees brix and there you will see a faint horizontal line that is the indicator of the dissolved sugar content of the grape juice.

Home winemakers can adjust sugar content to the ideal by adding sugar to the grape juice or by diluting the grape juice with water. But the most perfect and completely ripe grapes that will make the very best wine will have a dissolved sugar content that will measure in at 24 degrees brix. What is not evident by simply measuring the dissolved sugar content is the presence of the right amounts of other chemicals found in grape juice like tartaric or malic acids and other natural organic chemicals that are essential to making great wine.

The other natural organic chemicals give the grapes and the wine unique fragrance and/or bouquet and they will not be present in ideal amounts in grapes that are not fully ripe. They will also be less than ideal in grapes that were grown with inadequate or improper soil nutrients, sunlight, temperature, water (timing specific rainfall) and chemicals to destroy such things as fungus or bacteria or virus on/in the grape leaves or vine or roots. Such deficiencies can be observed and tasted if the winemaker obtains grapes directly during visits to different vineyards. Otherwise the home winemaker has to hope for the best and make chemical adjustments as necessary, noting that trace amounts of natural organic chemicals that provide fragrance and/or bouquet are not even available to be added.

Well, given that you have or make grape juice that has the right dissolved sugar content, the first thing you have to realize is that the juice has been exposed to a lot of air and equipment contact during crushing and pressing. All the wild yeasts and bacteria that may be commonly found in the air and on the equipment you used will, if not eliminated, ruin your efforts to make great wine. You thus have two choices, using chemicals like potassium metabisulfite in fairly high concentration to kill all life forms before trying to ferment the grape juice, or, by using pasteurization to accomplish the same task in combination with small amounts of potassium metabisulfite. I use the latter method.

Note that it is important not to overheat the grape juice during pasteurization else very important volatile natural organic chemicals that provide flavor, fragrance and/or bouquet will be destroyed. Do not exceed 165º F and do not hold the juice at that temperature for more than three minutes. Use only a stainless steel pot … never aluminum or any other metal. It is optimal to use a stove with a gas burner for instant reduction of heat as the pasteurization temperature is approached. Process the grape juice during pasteurization with a stainless steel spoon and a candy making thermometer in two or three quart batches, stirring during heating, and then add each pasteurized batch to a five gallon glass carboy that has been previously sterilized with 180º F water and a suitable concentration of potassium metabisufite. Keep the top of the carboy covered with plastic wrap between additions of pasteurized juice. Use a sterilized wide mouth plastic or stainless steel funnel to transfer the juice from your stainless steel pot (again, use only stainless steel) into the carboy, returning the funnel into a pot of 180º F water between batches to keep it sterile.

If you have followed my directions you now have one or more five gallon carboys of completely sterile grape juice that has not lost any essential chemicals or in any other way been harmed. You have a small amount of the very necessary potassium metabisulfite present because of your initial sterilization of the carboy. Do note that in filling each carboy about a pint of the volume available at the top must be left empty for the later addition of a yeast culture and possibly even later a malolactic bacteria culture. Note also that the grape juice must be allowed to cool for some hours to get back to room temperature before adding the yeast culture. Move each carboy to the location you will use during fermentation when it is about done cooling. I used a hand truck with straps to keep the carboys in place, individually, and I moved them from the kitchen to the basement and then lifted them onto a bench, very carefully (they weigh about 50 lbs.). I chose the cellar because the temperature there would be maintained naturally between 55ºF and 70ºF, which is important during fermentation. The ideal fermentation temperature range is 60º F to 70º F. Fermentation is too slow below 60ºF and too rapid above 70º F.

You can test the sulfur dioxide present in the grape juice from the potassium metabisulfite by using a small chemical measuring device called a titrette, which is discarded after the test. Additional potassium metabisulfite can be added at this point if necessary to achieve a level of 15 parts per million sulfur dioxide, which is about half of the normal recommended concentration but sufficient since the grape juice was pasteurized. Also, excessive sulfur dioxide will retard or even destroy fermentation, so I stay on the light side.

Use a top quality wine yeast (Champagne variety) along with a supply of yeast nutrient (diammonium phosphate). Mix the yeast packet (one per carboy) with one cup of cooled (105ºF) sterilized water in a one pint Pyrex measuring cup that has been first sterilized by boiling water and then cooled to 105ºF, covered with plastic wrap. Add the yeast nutrient and one half teaspoon of sugar and mix the ingredients well, then cover the container with the plastic wrap and keep it in a warm place (75ºF to 85ºF) for about two hours. At that point you should see considerable foaming activity as the yeast is activated. When that is true, even if it takes an additional two hours, you can again mix the contents carefully and dispense them into the carboy, once again putting the plastic wrap on the top of the carboy. The neck of the carboy should not contain any liquid, and if you plan to later do a second, malolactic fermentation, as I do, then allow for at least three cups of liquid to be added to the pure grape juice, without causing the liquid to rise into the neck of the glass carboy.

Use a device called an "air lock" to replace the plastic wrap on the top of the carboy. An air lock is typically a two or three piece plastic container that holds a small amount of sterilized water in a configuration that only allows gas to escape from the carboy and no air to get into the carboy. The air lock has a tapered plastic tube on one end that goes through a hole in a tapered rubber stopper and that combination is used, wetting the stopper first around the outside surface with sterilized water or even coating it lightly with a product like Vaseline®, to plug the top of the carboy.

The location you select to conduct fermentation should be no warmer than 70ºF. The ideal temperature is actually around 60ºF but 70º F or less is fine. Do not even attempt fermentation at temperatures below 50º F or higher than 72ºF. In the first case fermentation will be far too slow, even though commercial wine makers sometimes ferment grape juice at temperatures around and below 50ºF, and in the second case fermentation will be hot and occur far too fast with undesirable results of multiple types likely.

I will make no attempt in this section to cover the complex chemistry that occurs or can occur during fermentation. All most of us typically think about is the conversion of dissolved sucrose and fructose into ethyl alcohol, water and carbon dioxide gas. But the reality is that the success of that fermentation process and the development of a high quality wine are dependent on a whole lot of other chemistry considerations. For example, the acidity of the wine due to the presence of tartaric and malic acids will affect fermentation. Also, at different times during fermentation the presence or absence of sulfur dioxide gas in solution will aid in keeping chemicals you don’t want from forming. Of course, the presence of the small amount of potassium metabisulfite I use during carboy sterilization provides that sulfur dioxide gas in solution. Later additions of potassium metabisulfate are recommended by the professionals, perhaps to compensate oxidation during racking (to be explained shortly), but I did not find any further chemical addition to be necessary.

Other considerations include residual potassium metabisulfite or, technically, sulfur dioxide gas dissolved in the finished wine, total acidity before and after fermentation, pH, which when too high allows easy spoilage of the wine after bottling, residual sugar that will affect taste and also indicate whether or not the fermentation was successful, and of course the actual percentage of alcohol. All of these things are measured with essential testing supplies and equipment and sometimes controlled with special chemicals, like potassium carbonate.

For those of you who want a professional, more scientific treatment of wine chemistry I refer you to the book, Modern Winemaking© by Philip Jackisch, who is a research chemist wholly involved in commercial wine making and who is an editor of wine publications as well as other writings. The book is excellent and it is my bible for winemaking even though I have a few personal methods that I prefer over what Jackisch and others recommend. I will explain my reasoning later.

Fermentation rate is typically measured by the number of times in a minute that a bubble of carbon dioxide gas escapes through the air lock. As fermentation completes you will notice three things. First, the wine pretty much clarifies. Second, the dead yeast cells or lees form a sticky mess on the inside bottom of the carboy. Third, the fermentation rate slows to one bubble per two or three minutes or less.

At the conclusion of primary fermentation it is important to get the wine away from the lees so that any further undesirable chemical activity, including having a yeasty tasting wine, is avoided. The process of moving the wine from one carboy to another and leaving the lees behind is called racking. During the racking process, which is typically accomplished by siphoning, the wine is exposed to air and at this stage in the wine making process that is highly undesirable. Air exposure/dissolved oxygen in the must that was actually useful early in fermentation to assist yeast reproduction is now the enemy as oxidation of wine is very bad except for special wines like port or sherry. Racking may be done more than once, particularly and especially if after the initial racking additional lees form and/or some fermentation resumes. You will learn that my process is immune to air exposure now.

Here is where I used my determination, imagination and my education in chemistry and physics to depart from all the literature directed towards folks who make wine at home. The typical process described for racking the wine involves siphoning it from one carboy to another, which exposes a lot of the wine to a lot of air. That is most undesirable and demands further additions of potassium metabisulfite, so I designed my own system for racking that is truly superior and equal to or better than the most demanding commercial practices. See the diagram below.








The secret is in maintaining a completed closed system for the wine, from the beginning of fermentation all the way through the ultimate bottling of the wine. I accomplished that set of daunting tasks with a tank of carbon dioxide gas with a zero to thirty psi two stage regulator, a lot of plastic and glass tubing, 27 different brass valves and connections to a water faucet and a drain.

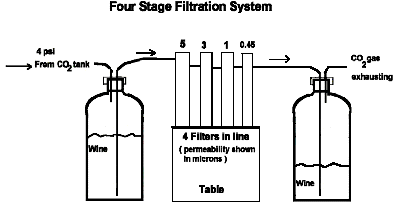

I also created within that configuration a four-stage filtration system that immediately preceded bottling and which totally clarified the wine and removed all traces of yeast and/or bacteria (0.45 micron filter), such that the bottled wine was sterile and stable and would not and could not undergo any later fermentation of any type. See the diagram on the next page.









è Special safety note: Carbon dioxide gas is heavier than air and it will accumulate in any small enclosed basement work area and become very dangerous to anyone working in that area because you can asphyxiate breathing that gas rather than air that contains the right amount of oxygen. The point is to ventilate the work area while you are working there continuously with a fan that provides fresh air from outside the work area and which thus helps exhaust the carbon dioxide gas from the enclosed work area. If you ever start to feel lightheaded or experience tunnel vision immediately leave the work area, else you will collapse to the floor and be breathing pure carbon dioxide gas, and then you will die.

I have never read or heard about anyone doing exactly what I did (maybe they died trying!). My specific solutions to many classic problems of wine making were unique and, except for one of the filters (which are reusable many times), inexpensive. But even I have further plans to improve my process by adding refrigeration/freezing temperatures prior to final filtration to conduct a process called cold stabilization. Cold stabilization is one way to precipitate out excess tartaric acid from the finished wine so that it can’t be present in excessive amounts in the final product and later precipitate out, creating a questionable wine appearance. The cold stabilization procedure is one way to effectively reduce wine acidity that does not involve addition of chemicals. Measuring acidity and in some instances deciding to something about it are common in winemaking. Cold stabilization is only useful for small amounts of acid reduction, and if you find yourself with a highly acidic wine then calcium carbonate can be used to reduce acidity. Moderate acidity (0.8% or less) can be reduced with potassium bicarbonate, followed by chilling to promote precipitation of potassium bitartrate.

What I intentionally avoided telling you earlier in detail is that the fermentation process I actually used is a double fermentation, the second part of which is bacterial, not yeast based. The special bacterial fermentation is started after normal yeast fermentation is well underway. It involves the injection of a special bacterial starter into the carboy that looks much like the yeast starter, but which converts the diacid, Malic acid, into a monoacid, Lactic acid. The process halves the acidity of the wine due to the presence of Malic acid, creating a Chardonnay that is buttery and smooth instead of sharp and acidic. The name for that process is a malolactic fermentation. It is a bit more complicated than simple fermentation as the lees must be mixed well with the fermenting juice multiple times during the fermentation with an inserted wing stirrer powered by an electric drill. That procedure does or can introduce some amount of air during fermentation simply by the physical process of temporarily removing the air lock to insert the stirrer to perform the stirring, which you can compensate with low flow rates of carbon dioxide gas around the opening of the carboy. Note here especially the importance of not using much potassium metabisulfate earlier in the process of making the wine because the resulting sulfur dioxide gas in solution in the carboy will inhibit or destroy the malolactic fermentation. There is plenty of time at the end of all fermentation and racking steps to adjust wine sulfite content.

The preparation of a malolactic bacteria starter is more complicated than making a yeast starter. In particular it is more difficult to get the bacteria to reproduce and consume yeast extract (a small amount from a cube of baker’s yeast can serve in place of a yeast extract nutrient), sugar, etc. Sterilized apple juice mixed equally with water is better than water alone for making a starter. Bacteria sensitivity to the carboy fermentation environment can actually result in the destruction of the starter when it is introduced into the carboy, unless steps are taken earlier to acclimate the bacteria to the environment in which it will be used. That means that small additions of the partially fermented wine are made periodically to the starter to gradually change the acidity, provide alcohol tolerance, etc. Also, the period for developing a robust starter can be up to two days or longer. Finally, the starter should be given time beside the fermentation carboy to equalize temperatures. It is surely worth the time to be careful, else the malolactic fermentation fails and the wine remains acidic instead of becoming buttery and smooth. Note that the volume of the starter when ready for the carboy will be about two cups.

The bacteria for a malolactic fermentation has in recent years largely been replaced with special enzymes to accomplish the same task. I have yet to use the enzymes so I cannot comment on degree of effectiveness or ease of use. Do note that the process of a malolactic fermentation creates some noxious gases that have to be purged from the wine before bottling. That is a real benefit of my enclosed pressurized carbon dioxide racking system, for all bubbling and noxious gas removal is done away from oxygen, and as you now understand that is highly desirable.

After both fermentations are complete the wine is racked. I do that by removing the air lock and replacing it with an air tight flexible plastic cover with two glass tubes in it. Do not use lubricated rubber stoppers during racking as the gas pressure will pop them off the top of the carboys. I fasten the plastic covers tightly to the neck of the carboys using stainless steel hose clamps. I then use carbon dioxide pressure via the short tube to push the wine out of the carboy into an empty carboy, via the long tube and plastic tubing, etc., to connect to the second, empty carboy that also has an air tight plastic cover (and has been flushed with carbon dioxide gas). The wine from the first carboy is pushed out through the long tube, which I adjust (depth and position, later tilting the almost empty carboy very slowly) during the racking process to capture wine but not the lees. A mere 4 to 5 psi pressure of carbon dioxide gas is enough to drive the entire system in all aspects, ultimately including final filtering after a few rackings. Thus, as I later bottle the wine output from the final filter I first replace the air in the bottle with carbon dioxide gas from a separate tube so that the wine from the bottling tube never is exposed to air. Corking (use the newer types of polymer, not actual corks) follows immediately, bottle by bottle.

A final part of the enclosed system I created that needs to be mentioned is that all components backflush first with tap water, then with potassium metabisulfite in water, then with pure carbon dioxide gas. That is a beautiful cleaning process … the carboys never have to be moved and the only exposure to air is from that naturally dissolved in the tap water, which at that point doesn’t even matter … the wine is long gone. Sometimes I use a long bottle brush with a cleaning agent (sodium carbonate) to assist the cleaning process, in particular if some juice components stick to the glass high in the first carboy, but, I never have to move the carboy(s). The first carboy in the process, however, must be returned to the kitchen to receive pasteurized juice from new grapes for the next batch of wine, after potassium metabisulfite and hot water re-sterilization.

For those of you who still wonder how carboy to carboy movement of wine and later cleaning water is done, think about one long glass tube in each carboy and also one very short tube. Now you can picture two way flows that with the proper use of the 27 valve system and much interconnected plastic tubing provides transport for wine, water, chemicals and the carbon dioxide gas. Even the four stage filtration system gets backflushed, which cleans the filters completely for the next use. In that situation a final higher pressure forward gas flush is used to remove all liquid from the filters and filter containers. When that isn’t sufficient to empty the filter container the filter container is unscrewed from a top housing section and the water is dumped and the gas flush is repeated to dry the filters.

I have discussed or mentioned many kinds of equipment, chemicals and other supplies in this rather long winemaking section. These things vary in ease of acquisition from trivial to virtually impossible depending on where you live. Your local wine arts clubs and stores are grossly inadequate. For that reason I am providing you the information necessary to order literally all of it, straight from the land of great winemaking in CA. Napa Fermentation®, owned and operated by Pat and Colleen Watkins in Napa California, is my source for everything except grapes. They have it all, they know what to recommend and they ship everywhere. They carry high quality equipment and chemicals and general supplies. You can find their web site using Google® and the words Napa Fermentation. Jackisch’s book, mentioned earlier, contains the names and contact information for companies that sell very specialized wine additives that Napa Fermentation® does not sell. You may never need any of the special additives.

The Internet is also the medium to use to seek high quality grape juice or "must" if you do not live in an area that grows the grapes you want to use. Quality suppliers will ship four or five gallon buckets of frozen must that has been treated with potassium metabisulfite to you. You must, however, be very careful to deal with a quality business lest they send you inferior product, as in "must" from grapes that were not fully ripe and thus deficient in quality in multiple ways, regardless of dissolved sugar content as delivered, which might have been done by sugar addition.

I had the advantage of visiting the vineyard and personally testing sugar content with my refractometer, and cutting the grapes from the vines with the grower. His grapes were perfect in every way. We then used his equipment to crush and press the Chardonnay grapes, and later to crush but not press Merlot grapes (you leave the skins in long enough to color the wine before pressing). In one instance I returned home with filled carboys of Chardonnay juice secured in my vehicle with seat belts. In the other I filled a 20 gallon plastic barrel with the crushed Merlot grapes and juice and transported it very carefully home, covered with a tight fitting lid and strapped and stuffed between other materials so it could not fall over during transit. I used my smaller wine press at home to process the crushed Merlot grapes into juice 24 hours later.

My cost was 90 cents per pound for Chardonnay grapes and $1.10 per pound for Merlot grapes. I spent at total of $90 for 100 lbs. of the Chardonnay grapes and the yield at the end of winemaking was 13 gallons, which is 50 liters or 67, 750 ml bottles. Thus, my cost per bottle for Chardonnay grapes was $1.35. Wow! And the cost for the Merlot grapes, which yielded the same amount of juice per pound of grapes, with me doing the pressing at home, was thus $1.65 per bottle.

The grower’s name is Manuel Silva. He is Portuguese and he came to the USA to buy and operate a vineyard and a small winemaking operation. He is a good guy. He runs a first class operation. We need more people like him all over the USA.

I conclude this section without providing any specific winemaking recipe and that is intentional. For those who want to make fine wine I am available to provide more information via email and also by direct conversation. What I will provide now to conclude the winemaking section is a partial list of equipment/supplies necessary to make wine using good technical methods and some of my own special methods.


Winemaking Supplies and Materials

4 or more 5 gallon glass carboys (that size is easy to handle yet holds a good volume of juice/wine)

100 feet of ½" inside diameter clear flexible plastic tubing

100 ½" diameter stainless steel hose clamps

2 one inch diameter stainless steel hose clamps

4 three inch diameter stainless steel hose clamps

21 feet of ½" outside diameter (3/8" inside diameter) clear glass laboratory tubing (7, 3 foot lengths will work fine)

Wine press

one gallon stainless steel pot

one long stainless steel spoon

one short stainless steel spoon

four one hole rubber stoppers to fit the carboys and the air locks

one candy thermometer

one pint Pyrex measuring cup

one set of stainless steel measuring spoons

one large mouth plastic or stainless steel funnel that fits the carboy opening

four air locks

petroleum jelly

four flexible plastic air tight carboy covers with two holes for glass tubing

25 brass or stainless steel valves

large tank of carbon dioxide gas

zero to thirty psi two stage regulator

eight cases of wine bottles

100 polymer corks

one corking machine

one wine thief

one pH meter

pH meter buffer solutions (4, 7 and 11 pH, 100 ml bottles)


sulfur dioxide titrettes for testing residual wine sulfites

phenolphthalein solution

sodium hydroxide solution (0.1 Normal)

2, 10 ml pipettes and one 50 ml burette

laboratory stand with clamps to hold the burette

glass stirring rod

various size beakers (50, 100, 200 ml)

various size Erlenmeyer flasks (50, 100, 200 ml)

potassium metabisulfite

potassium bicarbonate

calcium carbonate

tartaric acid

yeast (Pasteur Champagne)

yeast nutrient (diammonium phosphate)

Baker’s yeast


malolactic bacteria culture (Leuconostoc oenos ML 34 strain)


paper chromatography paper, jar and chemical

plastic tubing adapter for tap water connection

four stage cartridge filtration system

spring loaded bottle filling tube

scale to weigh chemicals accurate to +/- 0.02 gm

cartridge filters of permeability sizes 5, 3, 1 and 0.45 microns

wine bottle labels

wine bottle decorative caps

Vinometer or ebulliometer to measure wine alcohol percent

wing stirrer for carboys

electric drill

hand truck

nylon straps for the hand truck

carrying handles that fit the necks of the carboys

corkscrew (buy a really good one … you will thank yourself later)

wine glasses

small wood blocks to position/tilt a carboy during racking

bottle brush to clean carboys

20 gallon plastic barrel with tight fitting lid

the book, Modern Winemaking© by Philip Jackisch

large ventilation fan

Research notebook to record all winemaking events in detail for future reference
